SOFTWARE PRODUCTS

---

• PASTE FILE TRANSLATOR - THIS IS NOW FREE

  DOWNLOAD the LATEST VERSION - Build 34 - 2 April 2009 - Paste Dispenser File Translator.zip

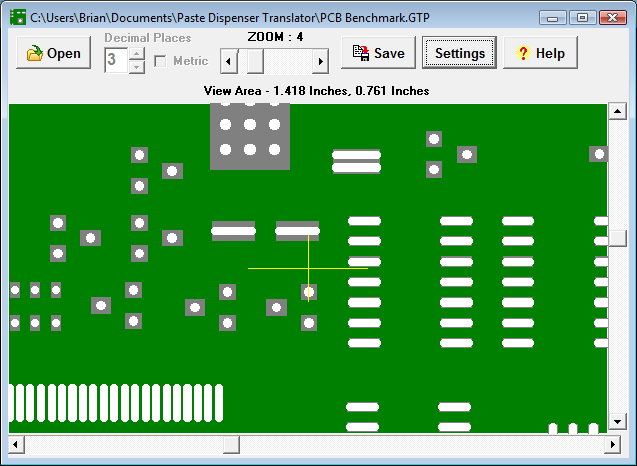

  Automatically converts a GERBER file of a PASTE layer into a DISPENSE file for use with MADELL DP2006 or PX3700 or PX/SX4700 family of machines with a PASTE DISPENSER.
  Works with MOST Gerber files. It currently does NOT support Aperture Macros.

  I have in the past used this for LOW VOLUME boards for DISPENSING solder paste.
  For the times when a cheap chinese paste stencil is inconvenient. The only downside so far is it takes more time that a stencil.


  It is extremely EASY to use and offers a wide range of options.
  There are a wide range of settings to allow you to adjust the DOT and LINE dispensing.

  I use it personally and I can usually generate a DISPENSER file for each new job in around 30 seconds.

  It provides the following important features.
  • Automatic VARIABLE DOT SIZE.
  • Automatic LINE dispensing.
  • Automatic DOT ARRAYS and LINE ARRAYS for large pads.
  • Precision MACHINE ERROR COMPENSATION to provide the highest possible accuracy.

It is intended for use with WINDOWS XP or WINDOWS VISTA. It appears ok with WINDOWS 10 and WINDOWS 11
